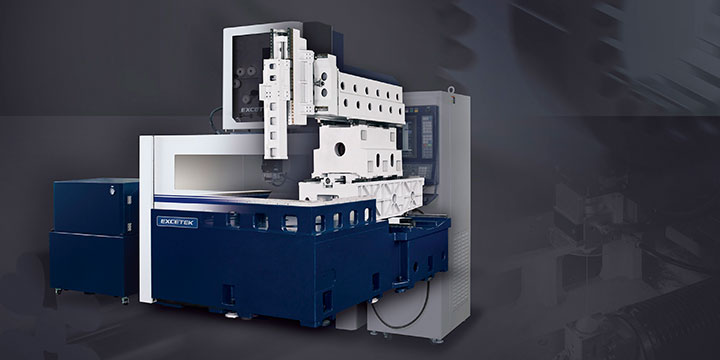

V2000
V2000
Specifications
| Maximum workpiece (mm) | 2500 x 700 x 345 mm (98.4" x 27.6" x13.6") |
| Max. Work piece Weight | 2500 kg (5512 lb) |
| Travel of X/Y axes | 2000 x 450 mm (78.7"x 17.7") |
| Travel of U/V axes | 160 x 160 mm (6.3" x 6.3") |
| Travel of Z axis |
350 mm (13.8") Submerged height 300mm(11.8") |
| Wire diameter |
0.2~0.33mm (0.0078"~0.0129") |
| Number of axes controlled | 5 Axis AC Servo Motor |
| Max taper angle | ±30°/ 100mm(±30°/ 3.9") with wide diamond guide and nozzle |
| Machine size | 3135 x 5260 x 2200 mm (123.4" x 207.1" x 86.6") |
| Machine Weight | 6500 kg (14330 lb) |
| Water tank capacity | 2500L |
Features
Accessory
Standard Accessories
- Ion exchange resin
- Paper filter
- Diamond guide
- Flushing nozzle
- Power feed contact
- Brass wire
- Clampling Jig
- Power feed measurement
- Alignment Jig
- Toolbox
Options
- XY axis linear scale
- AWT
- Auto Voltage Regulator (15KVA)
- Transformer
- Short Message Service (SMS)
- Remote Monitor System
- Super Finish Circuit
- Multi-Level cutting
- Jumbo Feeder (L-50A)
- W Axis
- Wide angle nuzzle
